Statistics, row estimations and the ascending date column

SQL’s auto-updating statistics go a fair way to making SQL Server a self-tuning database engine and in many cases they do a reasonably good job

However there’s one place where the statistics’ auto-update fails often and badly. That’s on the large table with an ascending column where the common queries are looking for the latest rows.

Let’s have a look at a common scenario.

We have a large table (imaginatively called ‘Transactions’) with a date time column (even more imaginatively called ‘TransactionDate’). This table gets about 80,000 new records a day and currently has around 8,000,000 records in it. So we can say roughly that another 1% is added to the table size daily. No records are updated and there’s a monthly purge of old data so that the total size remains about the same. A reasonably common real-life scenario.

CREATE TABLE Accounts (
AccountID INT IDENTITY PRIMARY KEY,
AccountNumber CHAR(8),
AccountType CHAR(2),
AccountHolder VARCHAR(50),
Filler CHAR(50) -- simulating other columns
)

CREATE TABLE Transactions (
TransactionID INT IDENTITY PRIMARY KEY NONCLUSTERED,
AccountID INT NOT NULL FOREIGN KEY REFERENCES Accounts (AccountID),
TransactionDate DATETIME NOT NULL DEFAULT GETDATE(),
TransactionType CHAR(2),
Amount NUMERIC(18,6),
Filler CHAR(150) -- Simulating other columns
)
GO
CREATE CLUSTERED INDEX idx_Transactions_TransactionDate
ON Transactions (TransactionDate)

CREATE NONCLUSTERED INDEX idx_Transactions_AccountID
ON Transactions (AccountID)

CREATE NONCLUSTERED INDEX idx_Accounts_AccountType
ON Accounts (AccountType)

-- Using RedGate's SQLDataGenerator to generate some data for this.

Accounts Transactions

Day 1 of the month, the indexes have just been rebuilt (after the data purge) and the statistics associated with those have been updated. The latest value in the TransactionDate column is ’2011/01/31′ and the last value in the statistics histogram is ’2011/01/31′. Life is good.

Day 2 of the month, there have been 80,000 new records added for the previous day. Only 1% of the table has been updated, so the automatic statistics update would not have triggered. The latest value in the TransactionDate column is ’2011/02/01′ and the last value in the statistics histogram is ’2011/01/31′. Doesn’t look like a problem.

Fast forwards another couple of days. Day 5 of the month. By this point 300,000 rows have been added since the beginning of the month. This amounts to around 5% of the table. Hence the statistics auto-update (triggered at 20%) still would not have run. The latest value in the TransactionDate column is ’2011/02/04′ and the last value in the statistics histogram is ’2011/01/31′. Starting to look less than ideal.

So, what kind of effect does this have on the queries against that table?

Let’s assume there’s an important query that runs every morning to calculate the totals for the previous three day’s transactions.

CREATE PROCEDURE AccountPositionSummary (
 @EffectiveDate DATE
)
AS
SELECT a.AccountNumber, a.AccountHolder, t.TransactionType, SUM(t.Amount) AS AccountPosition, CAST(TransactionDate AS DATE) AS EffectiveDate
 FROM dbo.Accounts a
 INNER JOIN dbo.Transactions t ON a.AccountID = t.AccountID
 WHERE t.TransactionDate >= @EffectiveDate
 GROUP BY a.AccountNumber, a.AccountHolder, t.TransactionType, CAST(t.TransactionDate AS DATE)
GO

Day 1 ( the 1st of Feb) the query is run over the records from the 29th January to the 31st. The stats histogram lists the 31st as the maximum value of the TransactionDate column (which it is) and so the optimiser is able to get a very accurate estimate of the rows affected.

GoodExecPlan

The execution stats look pretty decent considering the amount of data in the table.

Table ‘Worktable’. Scan count 0, logical reads 0, physical reads 0.
Table ‘Transactions’. Scan count 1, logical reads 6329, physical reads 0.
Table ‘Accounts’. Scan count 1, logical reads 112, physical reads 0.

SQL Server Execution Times:
CPU time = 1076 ms,  elapsed time = 2661 ms.

Day 2 (2nd Feb) the query is run over the records from the 30th January to the 1st Feb. The plan is unchanged and still fast, but there’s early warning signs of a problem

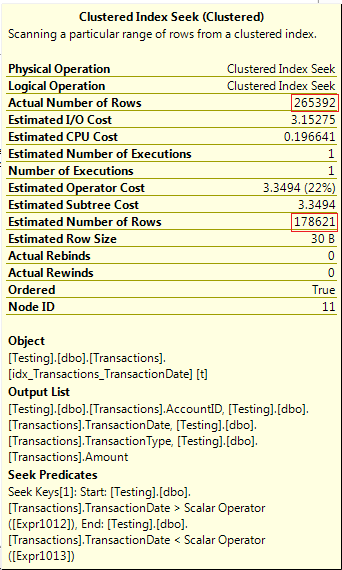

EarlyWarning

There’s a difference in the estimated and actual row counts, and not a small one. It’s not affecting the plan, yet, but there are several days still to go before the auto_update will kick in (at around 1% of the table modified each day, it’ll be about the 20th of the month before the auto update threshold is hit).

On Day 5, what does the plan look like?

BadExecPlan

Radically different. It’s worth noting that, because I’ve just been copying the previous day’s rows, the row count hasn’t changed at all, but we now have a nested loop join sitting in the middle. Nested loop joins do not work well with large numbers of rows in the outer table. Don’t be deceived by the narrow arrow leading to the nested loop. In the Management Studio display, the width can be defined by the estimated row counts (in this case 1), not the actual in some cases (note that the arrow in question doesn’t have an actual row count on it).

So have the execution stats changed?

Table ‘Accounts’. Scan count 0, logical reads 530784, physical reads 0.
Table ‘Transactions’. Scan count 1, logical reads 6358, physical reads 0.

SQL Server Execution Times:
CPU time = 2839 ms,  elapsed time = 6746 ms.

Um yeah, just slightly.

What’s happening here is that, because the new rows are all at the end of the index, the stats histogram doesn’t just show a estimate lower than the actual rows (as would happen for new rows inserted across the range of the data), it indicates that there are absolutely no matching rows. The optimiser then generates a plan optimal for one row.

Ironically, an ascending column is considered a good choice for a clustered index because it reduces fragmentation and page splits. Combine that with a query that always looks for the latest values and it’s very easy to end up with a query that intermittently performs absolutely terribly with no easy-to-see cause.

The fix isn’t hard, a scheduled statistics update, maybe daily depending on when data is loaded and what the queries filter for, fixes this completely. The trick is often realising that it is necessary.

It is worth noting that the example I’ve contrived here is not an isolated example, and it’s on the low-end of the possible effects. At a previous job I saw a rather critical daily process that would go from around 30 minutes at the beginning of the month to several hours somewhere late in the second week of the month, because the stats on the datetime column indicated 0 rows, instead of the 5 million that the query would actually return.

15 Responses to “Statistics, row estimations and the ascending date column”

  1. Nice tests with a very well explained tricky behaviour of the engine because things just fall out of the builtin tollerances.
    And …. provided with a valid advise for a solution.
    Shouldn’t MS provide a relative percentage altered of a configurable one so the autoupdate might be able to keep up ?

    One side note:
    When performing statistics updates, do it before your index rebuilds ( or exclude stats of indexes if combined with index maintenance )

    Thank you for this nice blog entry.

  2. There’s more wrong with the stats update than just the threshold…

    Only update stats that are not associated with indexes that you’ve just rebuilt. Waste of time otherwise.

  3. Excellent post… Thanks for this… very eye-opening!

  4. To define when to update the statistics, rowmodctr from sys.sysindexes can be used.

  5. But there’s no magic number at which point stats always need updating.

    Apps are different, query usage is different. Some queries will go bad after a couple hundred rows changes, some will still be find after many thousands.

    Also, sysindexes is deprecated, should not be used any longer. The rowmodctr is no longer a count of row changes, it’s calculated based off the hidden column modification counters, it may not be accurate.

  6. [...] Statistics, row estimations and the ascending date column – Another brilliant post from Gail Shaw (Blog|Twitter) this week, providing a walk through by example that illustrates just how important statistics are to performance. [...]

  7. Oh… and it gets worse! Because of the suddenly long running queries, locking goes through the roof with tons of blocked transactions. We ended up running the stats updates several times a day. And, wherever possible, we added ‘nolock’ to our queries to lower the transaction isolation. That also helped things quite a bit.

  8. I have a table with 1+ billion rows that has this problem. Update stats takes a long time, when a fullscan is needed. Is a fullscan needed?
    Would it be possible to create a filtered index to solve this problem?

  9. I can’t count the number of times I have seen this scenario at client’s! Very common problem in many OLTP systems.

  10. Fullscan, usually yes. You can try sampled, but I wouldn’t take the chance personally

    Filtered stats can certainly help, but you MUST update them yourself. The 20% threshold for filtered stats is 20% of the table, not 20% of the rows qualifying for the filter.

  11. Thank you very much for your suggestions. I’ll try filtered indexes with scheduled updates.

  12. Bear in mind that the predicate on the statistics must match a predicate in the query for SQL to consider using them, it may reduce the usefulness.

  13. […] write up an interesting case study involving the ascending key problem (for those unfamiliar, see Gail Shaw’s excellent writeup for example), so that post will probably need to wait for a while. It’s not my intent to […]

  14. […] It is common for development to be performed against representative data which is much smaller than what may be expected in real life and, more significantly for this discussion, that does not update during the development process. If this data contains an ascending key (or a non-key date column that is frequently used to filter data) and statistics are not managed, there is a good chance that the statistics will auto update frequently and predictably immediately after deployment but infrequently and unpredictably later on as the size of the data set grows. This can lead to drastically different execution plans and wild swings in execution time for some operations from day to day. The most direct way to fix this issue is to manage any relevant statistics more closely. For example, if a large ETL operation is involved then updating statistics immediately after the data is loaded can work wonders for consistent performance. For more information on this issue, other than the below see, for example, sqlinthewild. […]

  15. […] significant change with the new CE has to do with the “ascending key problem“. You can click the link for more details on the issue itself, I won’t detail them here […]
